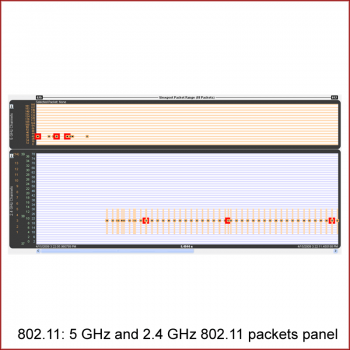

  • 2.4GHz and 5GHz 802.11_packets

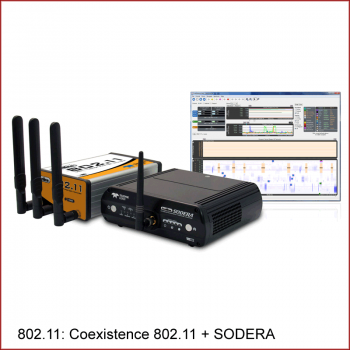

  • Coexistence Frontlne 802.11 plus Frontline SODERA

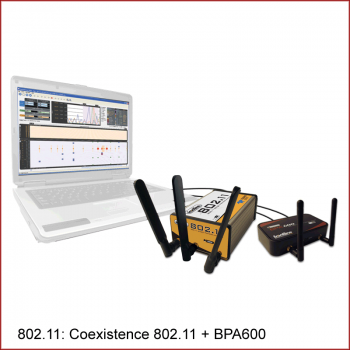

  • Coexistence Frontline 802.11 plus Frontline BPA600

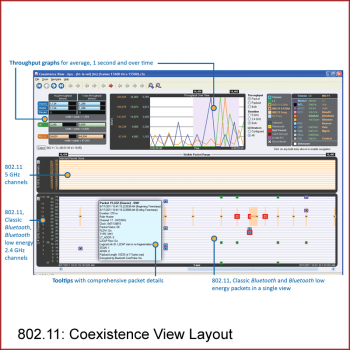

  • Coexistence View Layout

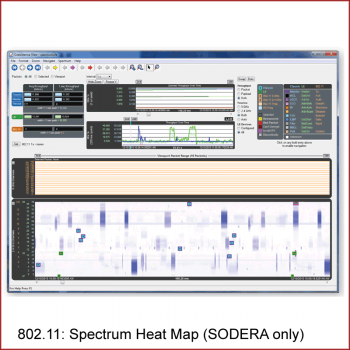

  • Coexistence Spectrum Heat Map (SODERA only)

Frontline 802.11

€9,995.00
Tax excluded
Get Quote

802.11 a/b/g/n Protocol Analyzer

The precise and comprehensive analysis tool to inspect 802.11 and Bluetooth over 802.11 wireless communications.



To be used with:

• SODERA

• BPA600

• BPA500 (a legacy analyzer)

• or standalone.



It includes powerful

• Frontline software and

• the 802.11 a/b/g/n hardware interface (ie. the “yellow” box).

Quantity
Last items in stock

See also Datasheet [Attachments tab].

Designed to capture packets (Don't Drop any Packet)

The Frontline 802.11 protocol analyzer lets you passively capture wireless traffic like never before. No other device on the market provides the precision, reliability, or capacity to gather wireless data better than the Frontline 802.11 protocol analyzer!

The sheer volume of 802.11 data flowing between devices can be staggering, but gone are the days when you missed or dropped large numbers of packets because your analyzer simply couldn’t keep up with the amount of data flowing through the air. Frontline has met the challenge head-on by building into the Frontline 802.11 analyzer a staggering ~250GB data buffer

Precise and synced Timestamps

The ComProbe 802.11 introduces a new level of precision regarding timestamps and Bluetooth Coexistence. Now developers can connect the ComProbe 802.11 analyzer with the Frontline BPA 600 or Frontline SODERA using Frontline's ProbeSync™ technology - enabling two or more analyzers to share a common clock.

Hardware interface provides

Massive buffer - no or essentially fewer dropped packets

• Precise packet timestamps synchronized with the Frontline Sodera or BPA 600 through ProbeSync™ technology, which allows devices to share a common clock

Probe Sync

Bluetooth® Coexistence View

Once connected developers can clearly see both 802.11 packets and Bluetooth 4.0 or 5 +HS packets together in one coexistence view.

The analysis of 802.11 and Bluetooth data packets in one view is possibly one of the most challenging tasks for wireless device developers. Capturing the precise timing, size, and frequency of each and every packet is essential to successfully developing and debugging devices using both technologies, and until now has been, at best elusive.

Frontline Software provides here:

• Improved coexistence view

• Spectrum analysis

Key Features and Benefits (summary)

Get the Data You Need - See ALL of the data ALL of the time and never drop a packet. Capture 100% of the data with our built-in ~250GB buffer.

Trust the Data You Get - Get exact timing information for each packet. The Frontline 802.11 provides reliable and accurate timestamps for all packets.

Bluetooth Coexistence is a snap! - The coexistence view combines 802.11 and Bluetooth 4.0 or 5 +HS packets into one view with precise timestamp synchronization using Frontline's ProbeSync technology.

Analyze devices using the spectrum of 802.11 protocols - 802.11 a/b/g/n support means you don't have to wonder if an 802.11 protocol is supported.

Download

Datasheet 802.11

802.11 features and specifications

Download (1.2M)
The Frontline 802.11 Hardware Interface

The Frontline 802.11 Protocol Analyzer includes the portable and robust 802.11 a/b/g/n hardware interface (note: ie. the yellow box depicted above), which supports connectivity to 802.11 wireless communications.

The 802.11 a/b/g/n hardware interface is one member of an extensive arsenal of technology-specific hardware interfaces, all functioning with the powerful Frontline software. This modular approach allows greater flexibility in protocol analysis and debugging, and provides comprehensive views over virtually any combination of protocols.

Supported Configurations

OS Supported: Windows 7, 8 and 10

USB Port: USB 2.0 or USB 3.0 High-Speed

Minimum System Requirements

Processor: Core i5 processor at 2.7 GHz

RAM: 4 GB

Free Hard Disk Space: 20 GB

Technical parameter specification

Supports IEEE 802.11 a/b/g/n specifications

Supports WEP and WPA2 decryption

Supports 2.4 and 5.0 GHz bands

Features 3x3 MIMO technology

Supports data rates of up to 130 Mbps for 20 MHz channels and 300 Mbps for 40 MHz channels

Short guard interval for both 20 MHz and 40 MHz channels

LDPC Coding

Bus Type: USB 2.0 Type B, compatible with USB1.1

Operating Frequencies: 2.412GHz – 2.4835 GHz, 5.15 - 5.85 GHz

Power: AC Adapter supplied. The output of the adapter is 12Vdc, 2.5A

Dimensions: 167mm X 103mm X 53mm

Temperature: 0° to 30° Celsius

Humidity:Operating: 10% to 90% RH (noncondensing)

Receive Sensitivity 802.11a: -68dBm ±2dBm@54Mbps802.11b: -85dBm ±2dBm@11Mbps 802.11g: -68dBm ±2dBm@54Mbps 802.11gn HT20: -68dBm ±2dBm@MCS7802.11gn HT40: -68dBm ±2dBm@MCS7802.11an HT20: -68dBm ±2dBm@MCS7802.11an HT40: -68dBm ±2dBm@MCS7

Modulation 802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM).
